Compared to standard front-loading box furnaces, elevator-type laboratory furnaces offer improved sample handling, better temperature uniformity, and enhanced atmosphere sealing. Their bottom-loading design makes them especially suitable for high-temperature sintering of fragile ceramics, heavy crucibles, or samples requiring vacuum or inert gas protection.
1200℃ lifting furnace with hot air stirring, 2000×1000×1200mm chamber, 150KW, variable-frequency convection and tail gas purifier, 2-ton hydraulic platform, 30-segment program control for ceramic and new material sintering.
1600℃ vacuum atmosphere lifting annealing furnace, vertical single-chamber design with hydraulic bottom opening. MoSi₂ heaters around chamber, 650×650×650mm chamber, B-type thermocouple, ±1℃ control accuracy and temperature uniformity ≤±5℃. Equipped with vacuum, gas inlet and water cooling system, PLC touchscreen control, compatible with N₂, Ar, O₂, for sintering and annealing of ceramics, metallurgy and new materials.
800℃ vertical vacuum furnace equipped with 316L stainless steel liner, metal radiation shield and lifting sealed platform. Zoned Ni-Cr heaters, cold vacuum up to 5×10⁻¹Pa, inert gas protection available for metal vacuum heat treatment.
1700℃ small lifting resistance furnace with Φ130×150mm chamber, screw lifting structure, ±1℃ temperature control and 30-segment program heating. Air-cooled double shell, ideal for high-temperature sintering of lab samples like ceramics and new materials.
1700℃ high-temperature lifting furnace equipped with VOC purification unit, electric screw lifting, dual B-type thermocouples, 30-segment programmable control. It achieves 99%+ VOC removal for sintering and exhaust treatment in ceramic and printing industries.

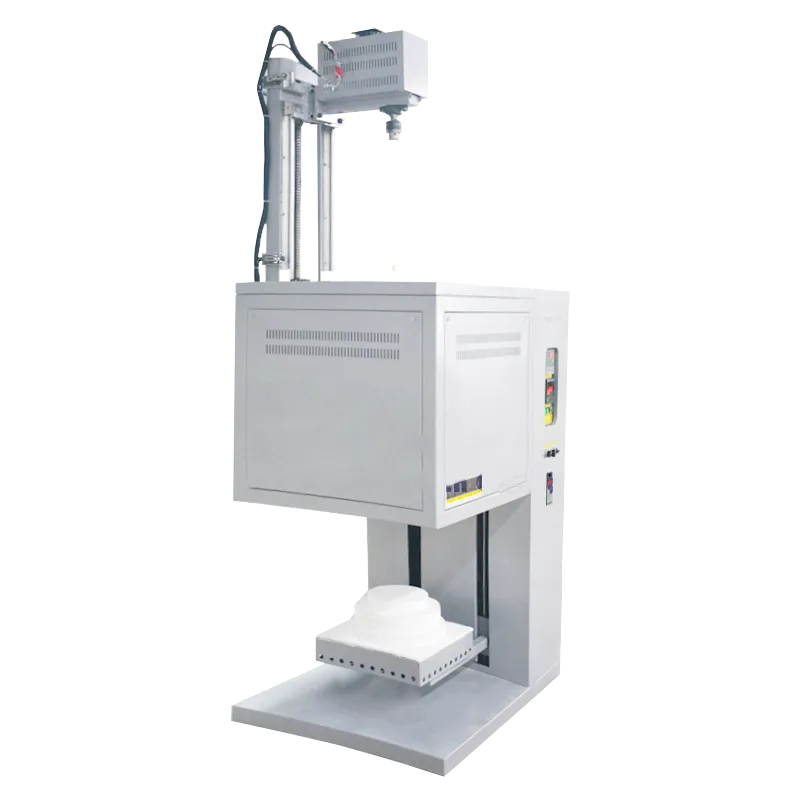

1700℃ digital lifting stirring furnace features electric loading platform, variable-frequency ceramic stirrer and infrared monitoring. ±1℃ control accuracy, 50-segment programmable heating and RS485 communication for sintering and melting of ceramics, metals and new materials.
