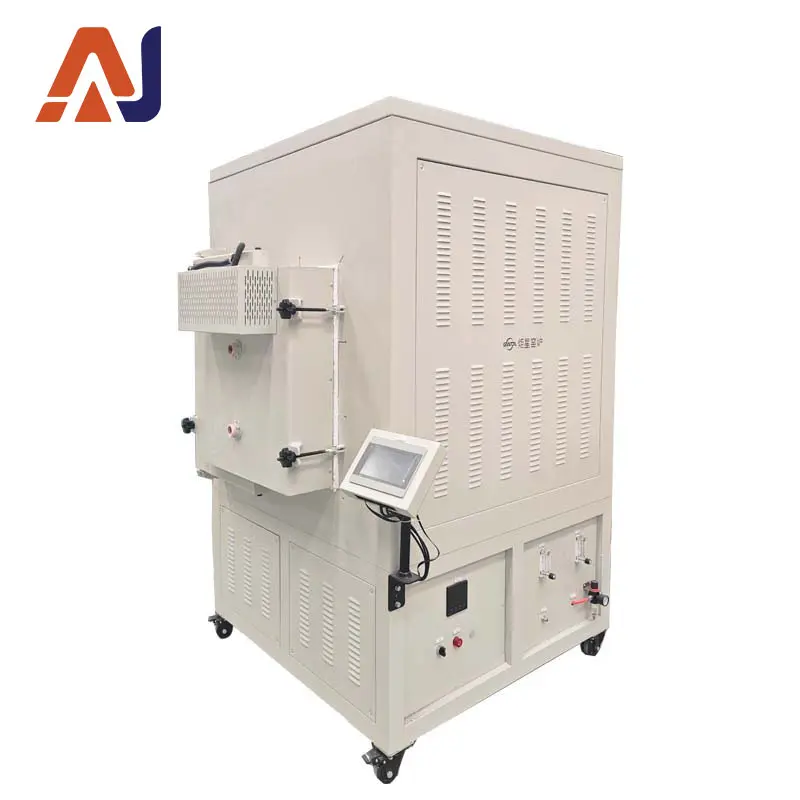

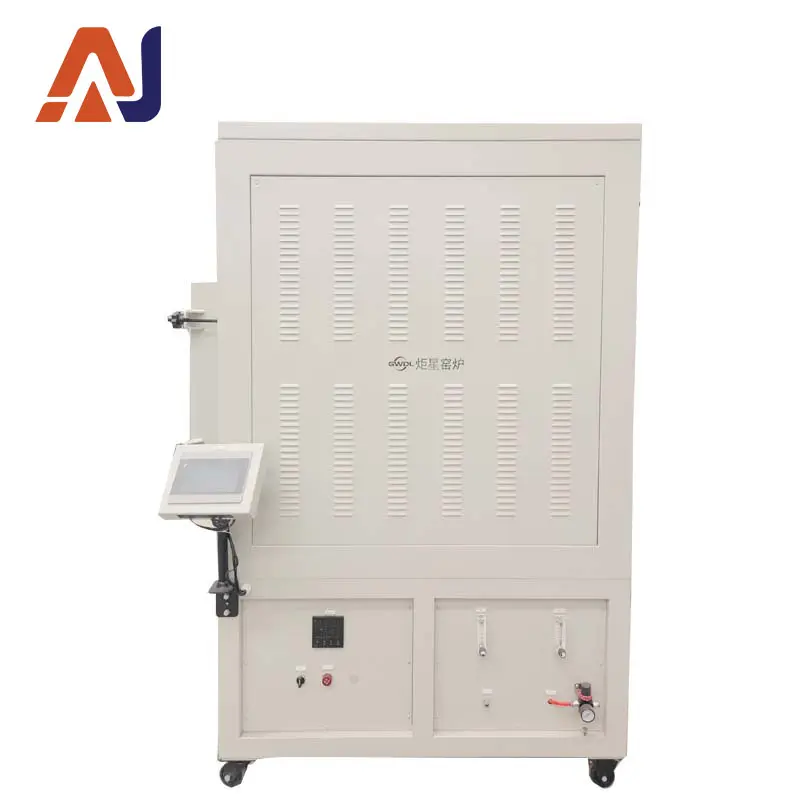

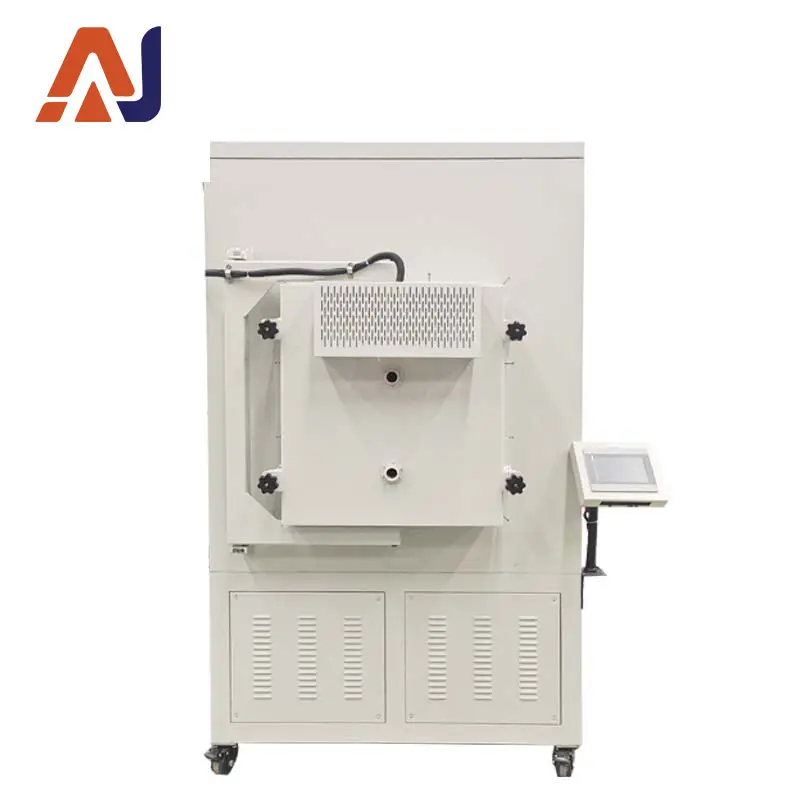

Covers the full temperature range of 1200-1850℃, suitable for different ceramic sintering requirements. Multiple-side heating is optional, supporting program temperature control and remote operation. It is a special high-temperature equipment for ceramic research and development as well as experiments.
| Maximum Operating Temperature | 1250℃ | 1450℃ | 1650℃ | 1750℃ | 1830℃ | 1880℃ |
| Long-term Operating Temperature | 1200℃ | 1400℃ | 1600℃ | 1700℃ | 1800℃ | 1850℃ |
| Temperature Measuring Element | Type K Thermocouple | Type S Thermocouple | Type B Thermocouple | Type B Thermocouple | Type B Thermocouple + Optical Fiber Infrared Temperature Measurement | Type B Thermocouple + Optical Fiber Infrared Temperature Measurement |
| Heating Elements | Resistance Wire/Silicon Carbide Rods | Silicon Carbide Rods | Model 1700 Silicon-Molybdenum Rods | Model 1800 Silicon-Molybdenum Rods | Model 1850 Silicon-Molybdenum Rods | Model 1900 Silicon-Molybdenum Rods |
| Heating Element Installation Position & Layout | Installed on two sides/top & bottom/three sides/four sides/five sides, customizable per customer requirements | |||||
| Temperature Control Precision | ±0.5-1℃ | |||||
| Furnace Temperature Uniformity | ±1℃ (varies by furnace size; multi-point independent temperature control available for high uniformity requirements) | |||||
| Heating Rate | Adjustable from 1℃/h to 40℃/min | |||||
| Temperature Curve Setting | Supports heating/cooling control, with programmable commands including jump (cycle), run, pause, stop | |||||
| Real-time Display | Real-time temperature, segment number, segment time, remaining time, output power percentage, voltage, current, etc. | |||||
| Precision Temperature Control of Electrical Part | Closed-loop dual-loop control technology, imported thyristor module trigger control, supports phase-shift/zero-crossing trigger modes; output voltage, current, power continuously adjustable with constant voltage, constant current, constant power characteristics | |||||
| Main Configuration of Electrical Components | Chint | |||||
| Communication Interface | RS485 interface, supports computer-controlled operations including furnace start, pause, stop, heating curve setting/reading, parameter setting, etc. | |||||
| Refractory & Insulation Materials | Lightweight multi-layer ceramic fiber board + nano board | |||||
| Special Design of Furnace Bottom & Top | Regenerative furnace bottom + reinforced furnace top, improves furnace temperature uniformity | |||||
| Furnace Shell Temperature During Long-term Operation | ＜45℃ during continuous operation (double-layer furnace shell structure) | |||||
| Furnace Body Structure | Air-cooled double-layer furnace structure | |||||
| Furnace Door Operation Feature | Axial 180° side opening, 360° rotatable furnace door | |||||
| Furnace Shell Treatment | CNC machined, processed by polishing, grinding, pickling, phosphating, plastic powder spraying, high-temperature baking | |||||
