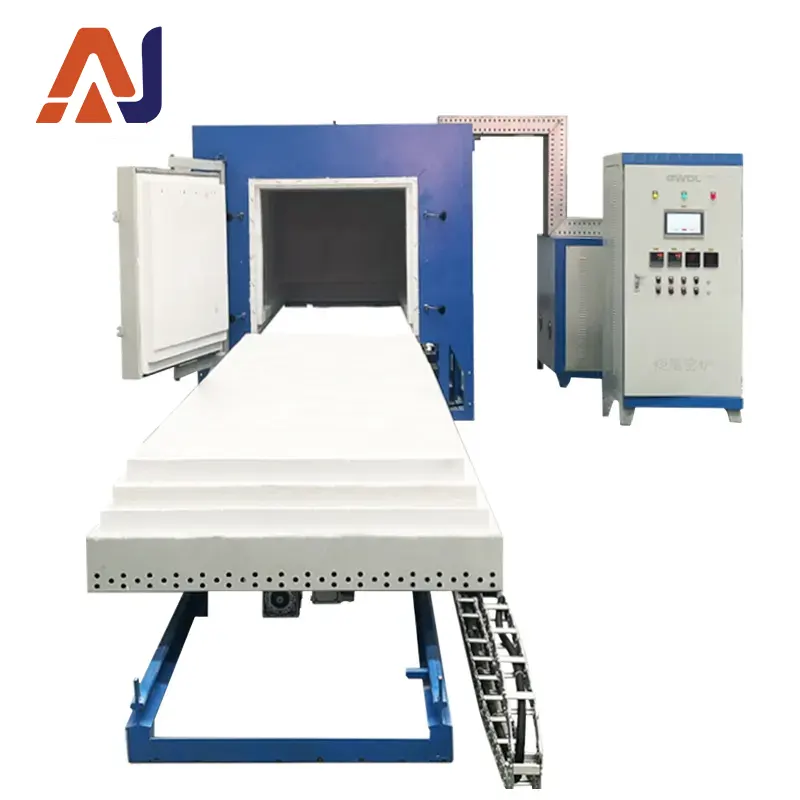

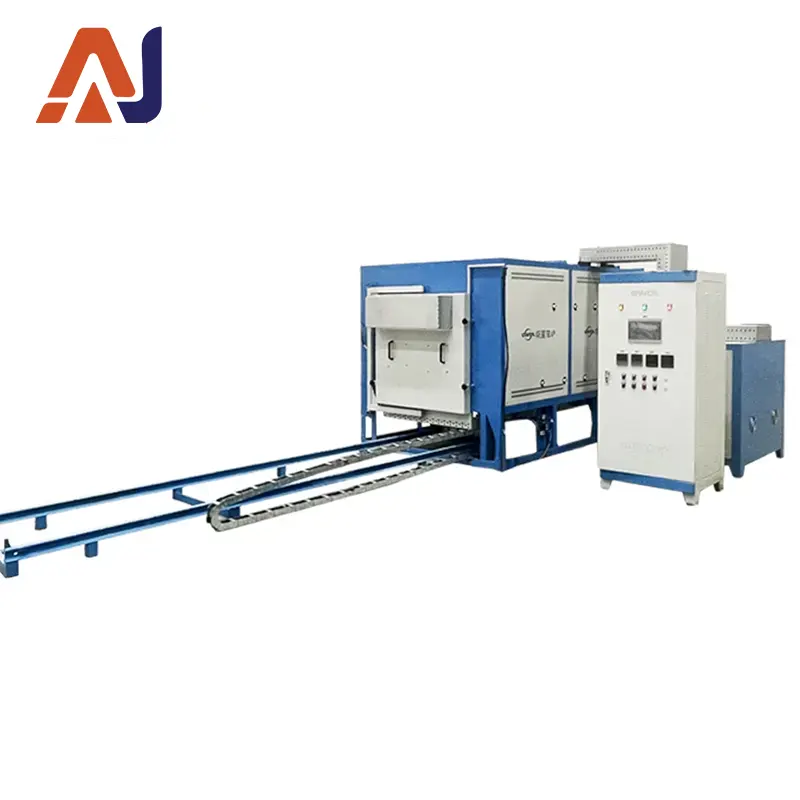

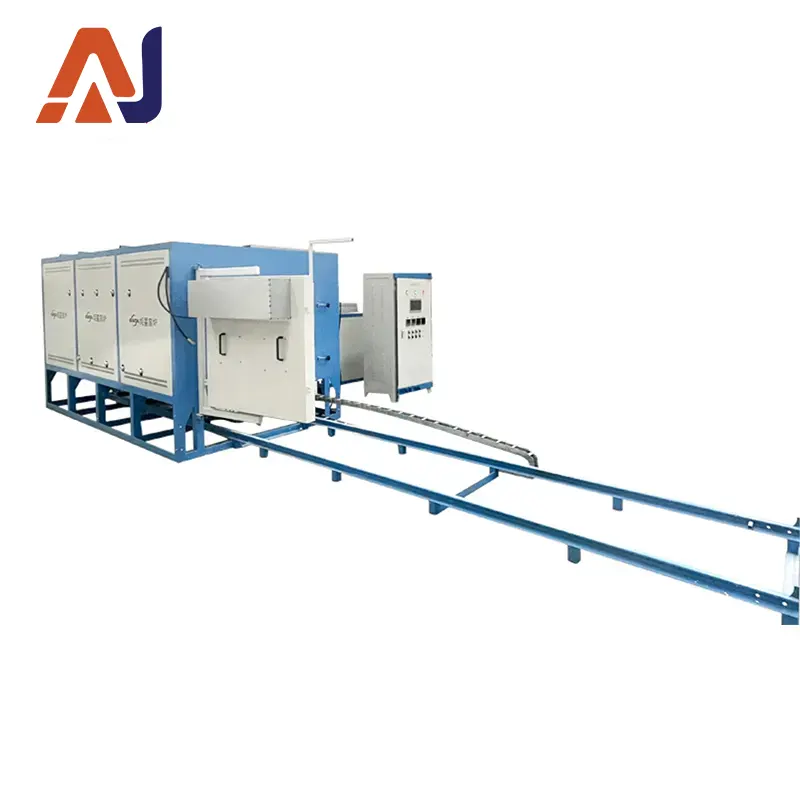

The 1600℃ trolley furnace can be used for long-term operation at ≤1500℃, with a furnace temperature uniformity of ±10℃. The heating rate is adjustable from 1-15℃/min. It is equipped with an air-cooled double-layer furnace body shell that resists high temperatures, along with an electric side-opening door + cylinder sealing system. It supports automatic temperature control and exhaust, and is specially designed for industrial high-temperature sintering.
| Temperature | 1600℃ |
| Power Supply (AC) | 380V |
| Power | Designed maximum 260KW |
| Loading Platforms | 2 |
| Furnace Chamber Dimensions (mm) | Depth 3050 × Width 1000 × Height 850 |
| Long-term Operating Temperature | Long-term operating temperature ≤1500℃ |
| Control Range | 80 to 1600℃ |
| Temperature Measuring Element | Platinum-rhodium thermocouple (Type S) |
| Installation Position of Heating Elements | Both sides of the furnace chamber + front and rear of the furnace door, with a total of four heating surfaces |
| Temperature Control Precision | ±1℃ (integrated circuit control, no overshoot) |
| Furnace Temperature Uniformity | ±10℃ (depending on the size of the furnace chamber) |
| Temperature Control Points | 2 |
| Exhaust Ports | Exhaust ports automatically open and close according to the temperature control instrument (2 ports with a diameter of 60mm) |
| Openings on Both Sides of the Furnace Chamber | Opening diameter 30mm; 5 on the upper left and 5 on the lower left |
| Heating Rate | Freely adjustable, recommended range: fastest 15℃/min, slowest 1℃/h |
| Heating Elements | Silicon molybdenum rods as heating elements |
| Furnace Body | Processed by CNC machine tools, with processes including polishing, grinding, pickling, phosphating, plastic powder spraying, and high-temperature baking. It features a two-color design and a novel, attractive appearance. |
| Furnace Body Structure | The electric furnace body adopts an air-cooled double-layer structure. Effective air-cooled guide partitions enable overall cold air circulation in the furnace shell, which finally cools the heating element conductive plates before being discharged, avoiding high-temperature oxidation of the conductive plates and ensuring a good working environment. |
| Furnace Door Opening Method | Electric side-opening door for entry and exit; after the trolley is 出炉，it is 1200mm away from the closed furnace door. |
| Furnace Door Sealing | 6 sets of cylinder seals on both sides + rear side of the furnace door |
| Loading Platform Capacity | 3 tons |
| Total Weight of Furnace Body | Approximately 5 tons |
| Refractory Materials | The furnace lining is made of vacuum-formed high-purity alumina lightweight materials |
| Furnace Top | Adopts a flat suspended ceiling design |
