800-1200℃ Integrated High-temperature Furnace. Core Keywords Large Furnace Chamber High-temperature Furnace, Silicon Carbide Rod Heating. Adjustable Heating Rate: 0.1-15℃/min. Three-layer Insulation with Over 80% Energy Saving. Dual-circuit Protection + 30-segment Program Temperature Control. Supporting Curve Storage and Modification. Meeting High-temperature Processing Requirements of Large-size Materials in Ceramics, Metallurgy and Other Fields.

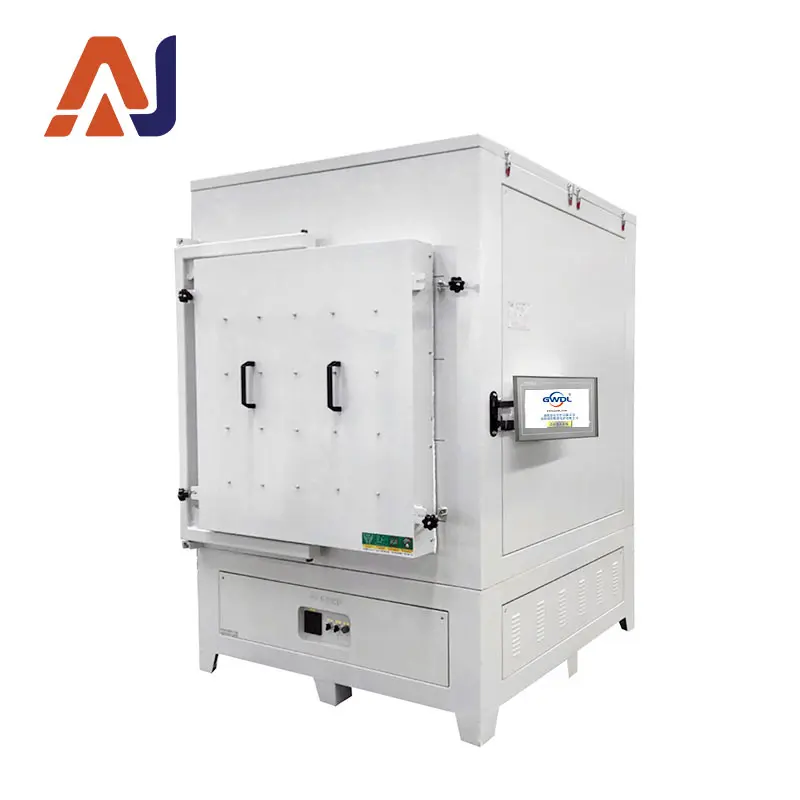

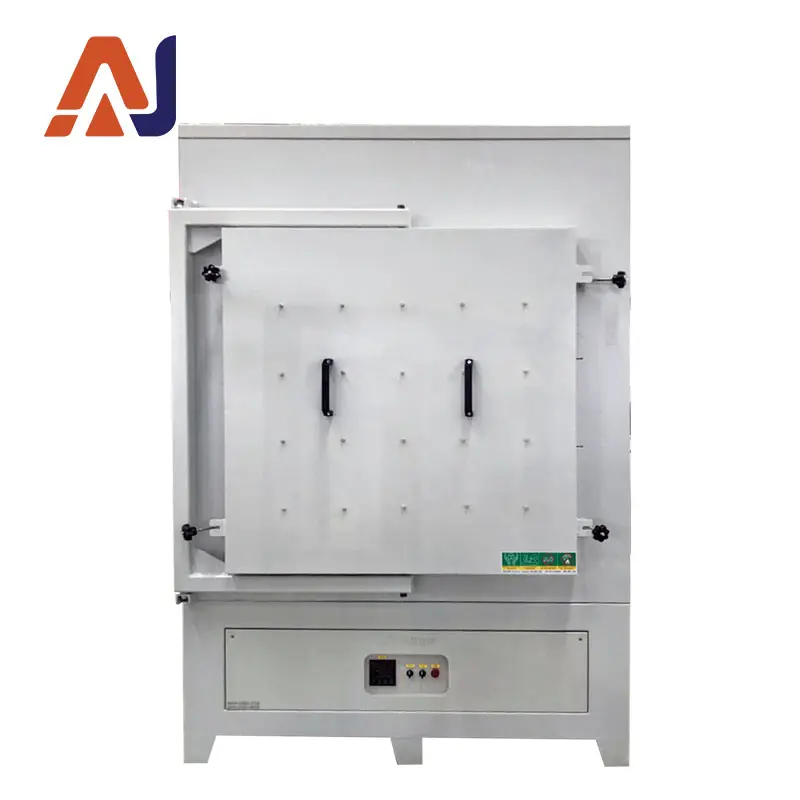

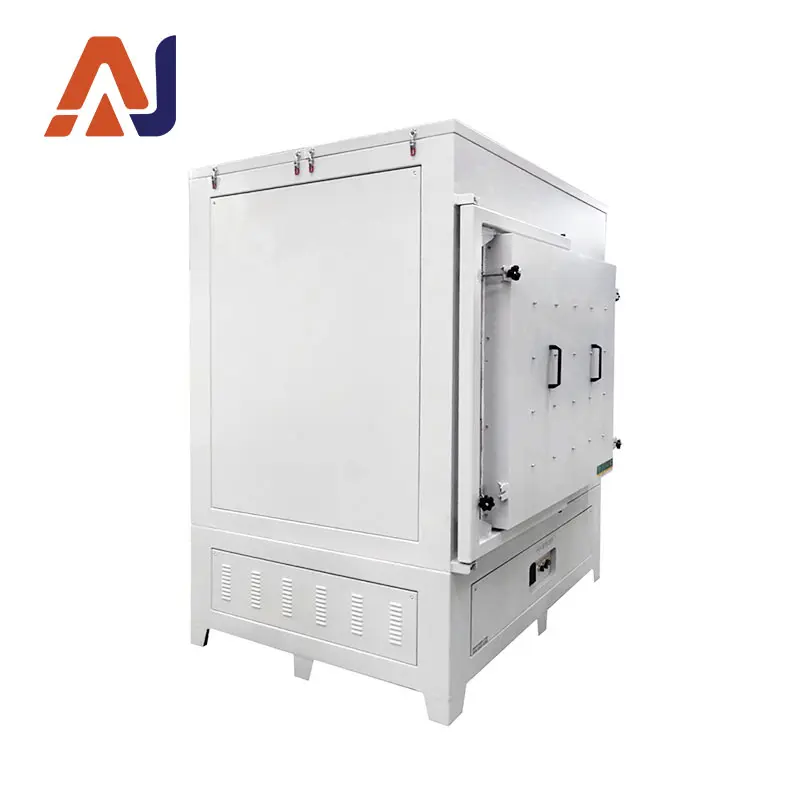

As shown in the figure, the 800-1200℃ High-temperature Furnace features an integrated design of control system and furnace chamber. The furnace lining is made of vacuum-formed high-purity alumina lightweight aggregate material.
It adopts silicon carbide rods as heating elements; it is a special equipment specially developed for laboratories of colleges and universities, scientific research institutes, and industrial and mining enterprises to conduct sintering, melting, analysis and production of ceramics, metallurgy, electronics, glass, chemical engineering, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals and other chemical materials.
The control panel is equipped with an intelligent temperature regulator, control power switch, main heating on/off button, voltage and current meters, and a computer interface, allowing real-time monitoring of the system’s working status. This product adopts reliable integrated circuits, with a good working environment and strong anti-interference performance. The temperature of the furnace shell is ≤45℃ at the maximum temperature, which greatly improves the working environment. With microcomputer program control and programmable temperature curves, it realizes fully automatic heating/cooling. Temperature control parameters and programs can be modified during operation, which is flexible, convenient and easy to operate.
Temperature control accuracy: ±1℃ without overshoot; Constant temperature accuracy: ±1℃. It has a fast heating rate, with the maximum heating rate ≤15℃/min.
The furnace chamber is entirely made of vacuum-formed high-purity alumina lightweight aggregate material, which has a high service temperature, low heat storage capacity, resistance to rapid heating and cooling, and good thermal insulation performance (the energy-saving effect is more than 60% that of traditional electric furnaces). It has a reasonable structure, with inner and outer double-layer furnace sleeves and air-cooled heat dissipation, which can greatly shorten the test cycle.
| Temperature Specification | 1200℃ |
| Power Supply (AC) | 380V 50Hz |
| Power | 80kW |
| Furnace Chamber Dimensions (mm) | Length × Width × Height: 1000×1000×1000 |
| Temperature Control Range | 80-1200℃ |
| Temperature Measuring Element | Type K Thermocouple, measuring range: 0-1320℃ |
| Number of Temperature Measuring Points | 1 point |
| Number of Heating Zones | 1 zone |
| Heating Element Installation Position | Vertically installed on both sides of the furnace chamber |
| Temperature Control Precision | ±1℃ (Integrated circuit control, no overshoot) |
| Furnace Temperature Uniformity | ±10℃ (Varies by furnace chamber size) |
| Heating Rate | Freely adjustable range: Maximum 15℃/min, Minimum 1℃/h |
| Heating Elements | U-shaped equal-diameter silicon carbide rods, non-metallic high-temperature heating elements made of high-purity α-SiC. Features: fast heating, high thermal efficiency, long service life, no deformation at high temperature, easy installation & maintenance, maximum temperature up to 1500℃. |
| Furnace Body | CNC machined, processed by polishing, grinding, pickling, phosphating, plastic powder spraying, high-temperature baking, etc. Novel and attractive appearance, with advantages of oxidation resistance, acid & alkali resistance, corrosion resistance, high-temperature resistance and easy cleaning. |
| Furnace Structure | Internationally advanced air-cooled double-layer furnace structure. Air-cooled guide partitions realize overall cold air circulation of the furnace shell, cooling the heating element conductive sheets before exhausting, avoiding high-temperature oxidation of conductive sheets and ensuring a good working environment. |
| Furnace Door Opening Mode | Axial 180° side opening, the furnace door can rotate 360° to prevent scalding the arm by the inner wall during high-temperature material taking. Equipped with stainless steel spring lock under the door for effective locking; the spring elasticity absorbs the expansion of refractory materials, ensuring free expansion/contraction and reliable sealing. |
| Refractory Material | Furnace lining made of vacuum-formed high-purity lightweight alumina material; collision-prone and load-bearing positions (furnace mouth, furnace bottom) adopt lightweight hollow sphere alumina board. Features: high operating temperature, low heat storage, resistance to rapid heating/cooling, excellent thermal insulation (energy-saving effect increased by more than 80% compared with traditional electric furnaces). |
| Insulation Materials | Three-layer insulation structure: Aluminosilicate fiber board, alumina fiber board, polycrystalline alumina fiber board; energy-saving effect increased by more than 80% compared with traditional electric furnaces. |
| Furnace Body Surface Temperature | ＜45℃ during long-term continuous operation |
| Safety Protection | Integrated module control unit with high precision; designed with dual-loop control and dual-loop protection, providing protection against overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start, etc. |
| Temperature Control System | Closed-loop thyristor module phase-shift trigger control. Output voltage, current or power is continuously adjustable with constant voltage, constant current and constant power characteristics. The current loop is the inner loop and the voltage loop is the outer loop; when load is suddenly applied or load current exceeds the limit, the regulator output current is restricted within the rated range to ensure stable operation. The voltage loop adjusts synchronously to maintain constant current and voltage with sufficient margin, protecting heating elements from excessive current/voltage impact and ensuring control precision and safety. |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | High-quality buttons with service life exceeding 100,000 times, equipped with LED indicators. |
| Temperature Curve Setting | Artificial intelligence temperature controller supporting multiple regulation modes (standard PID, APID, MPT), with self-tuning and self-learning functions, no overshoot or undershoot. Equipped with 30-segment program control, enabling heating/cooling control at any slope, supporting programmable commands such as jump (cycle), run, pause, stop; parameter modification is allowed during operation. Equipped with curve fitting intelligent adjustment algorithm to achieve smooth temperature control curve. |
| Multiple Curve Input | 30-segment program control function, configurable as: 1 curve with 30 segments, 2 curves with 14 segments each, 3 curves with 9 segments each, 5 curves with 5 segments each; multiple curves can be input simultaneously and called arbitrarily during use. |
| Spare Parts | 2 heating elements, 2 sets of rod fixtures, 1 crucible tong, 1 pair of high-temperature gloves |
| Warranty Scope & Period | The electric furnace comes with a 1-year free warranty; heating elements are not covered (free replacement for natural damage within 3 months) |
| Precautions | 1. To extend the service life of the electric furnace, the recommended maximum heating/cooling rate is 10-20℃/min (excessively fast heating will shorten the service life of heating elements); |
| 2. No vacuum sealing structure, flammable and explosive gases are prohibited; | |
| 3. Minor cracks in the furnace chamber after use are normal and will not affect operation; cracks can be repaired with alumina coating; | |
| 4. Corrosive gases are not recommended; if strong corrosive gases containing S, Na, etc. need to be introduced, please inform in advance for special treatment of the furnace chamber; | |
| 5. Prevent high-temperature solution from leaking to the furnace bottom; isolation can be achieved with base plates or alumina powder; | |
| 6. The instrument should be placed in a well-ventilated and dry environment. | |
| Packing List | 1 electric furnace, 2 heating elements, 2 sets of rod fixtures, 1 crucible tong, 1 pair of high-temperature gloves, 1 instruction manual, 1 certificate of conformity, 1 factory inspection report, 1 delivery order. |
