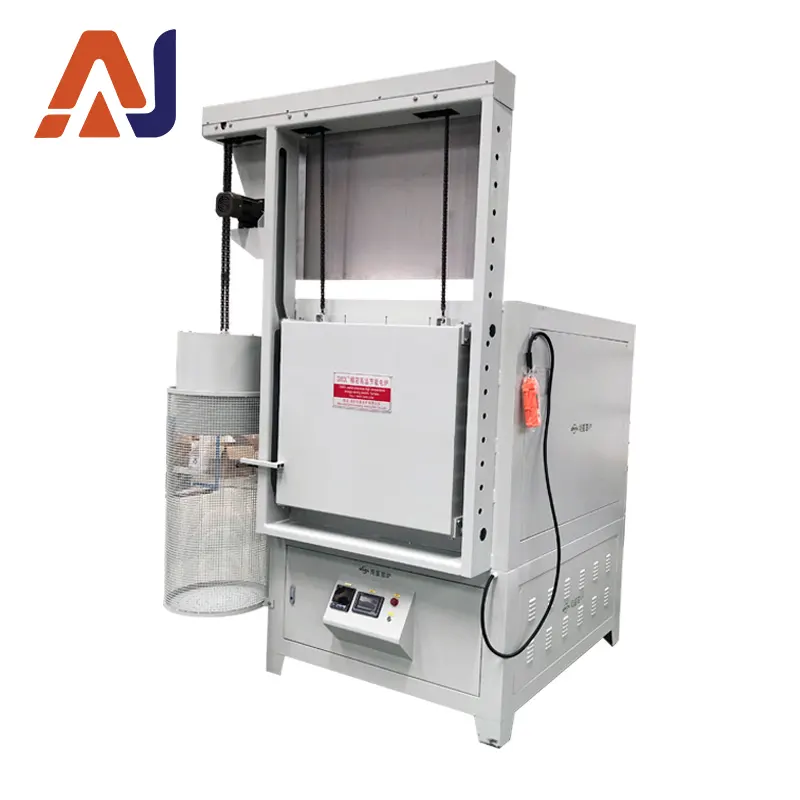

Heating Rate of Electric Top-opening Box-type Furnace: 0.1-20℃/min (Adjustable), Air-cooled Double-layer Furnace Body with Shell Temperature ＜45℃, Dual-circuit Protection + RS485 Communication, 30-segment Program Temperature Control, Meeting Batch High-temperature Processing Requirements in Ceramics, Metallurgy and Other Fields.
| Category | 1200℃ |
| Power Supply (AC) | 380V |
| Power | 40kW |
| Furnace Chamber Dimensions (mm) | Length × Width × Height: 1000×700×600 |
| Temperature Control Range | 80-1200℃ |
| Temperature Measuring Element | Type K Thermocouple, measuring range: 0-1320℃ |
| Heating Element Installation Position | Evenly distributed on both sides + bottom of the furnace chamber |

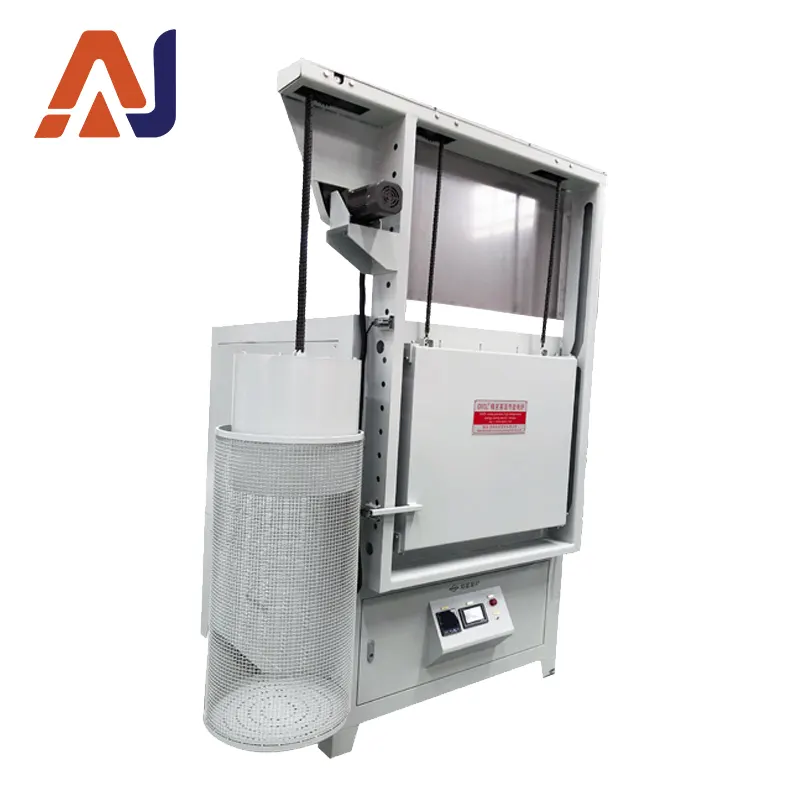

| Furnace Door Opening Mode | Electric upward opening, handle switch controls the opening and closing height |
| Temperature Control Precision | ±1℃ (Integrated circuit control, no overshoot) |
| Furnace Temperature Uniformity | ±8℃ (Varies by furnace chamber size) |
| Heating Rate | Freely adjustable range: Maximum 20℃/min, Minimum 1℃/h |
| Heating Elements | High-temperature alloy resistance wire (molybdenum-containing, surface temperature up to 1400℃) |
| Furnace Body | Processed by CNC machine tools, undergoing polishing, grinding, pickling, phosphating, plastic powder spraying, high-temperature baking and other processes. Novel and attractive appearance, with advantages of oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning. |
| Furnace Structure | Air-cooled double-layer furnace structure. Effective air-cooled guide partitions realize overall cold air circulation of the furnace shell, which cools the heating element conductive sheets before exhausting, avoiding high-temperature oxidation of the conductive sheets and ensuring a good working environment. |
| Refractory Material | Furnace lining is made of vacuum-formed high-purity lightweight alumina material; positions prone to collision during material handling (furnace mouth, furnace bottom) are made of lightweight hollow sphere alumina board. It features high operating temperature, low heat storage, resistance to rapid heating/cooling, excellent thermal insulation (energy-saving effect is more than 80% higher than old-fashioned electric furnaces). |
| Insulation Materials | Three-layer insulation structure: Aluminosilicate fiber board, alumina fiber board, polycrystalline alumina fiber board; energy-saving effect is more than 80% higher than old-fashioned electric furnaces. |
| Furnace Body Surface Temperature | ＜45℃ during long-term continuous operation |
| Safety Protection | Adopts an integrated module control unit with accurate control precision, designed with dual-loop control and dual-loop protection. It provides protection against overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start. |
| Temperature Control System | Uses closed-loop thyristor module phase-shift trigger control. Output voltage, current, or power is continuously adjustable, with constant voltage, constant current, or constant power characteristics. The current loop serves as the inner loop and the voltage loop as the outer loop. When a load is suddenly applied or the load current exceeds the limit, the output current of the regulator is restricted within the rated range to ensure normal operation. The voltage loop also participates in regulation to maintain stable output current and voltage within the rated range (with sufficient adjustment margin), protecting heating elements from excessive current/voltage impact and ensuring safe, reliable control effect and precision. |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | High-quality buttons with service life exceeding 100,000 times, equipped with LED indicators |
| Temperature Curve Setting | Uses an intelligent temperature controller supporting multiple regulation modes such as standard PID, artificial intelligence adjustment (APID), and MPT. It has self-tuning and self-learning functions, with no overshoot or undershoot. Equipped with a 30-segment program control function, it enables heating and cooling control at any slope, and supports programmable/operable commands such as jump (cycle), run, pause, and stop. Program modification is allowed during operation. An artificial intelligence adjustment algorithm with curve fitting function is adopted to achieve smooth and stable curve control. |
| Multiple Curve Input | 30-segment program control function, which can be set as follows: 1 curve with 30 segments, 2 curves with 14 segments each, 3 curves with 9 segments each, 5 curves with 5 segments each; multiple curves can be input simultaneously and called arbitrarily during use. |
| Communication Interface | RS485 communication interface |
| Spare Parts | 1 crucible tong, 1 pair of high-temperature gloves |
| Warranty Scope & Period | The electric furnace comes with a 1-year free warranty; heating elements are not covered (free replacement for natural damage within 3 months) |
