AJ 800°C Industrial Heat Treatment Drying Oven Hot Air Circulation Trolley Furnace

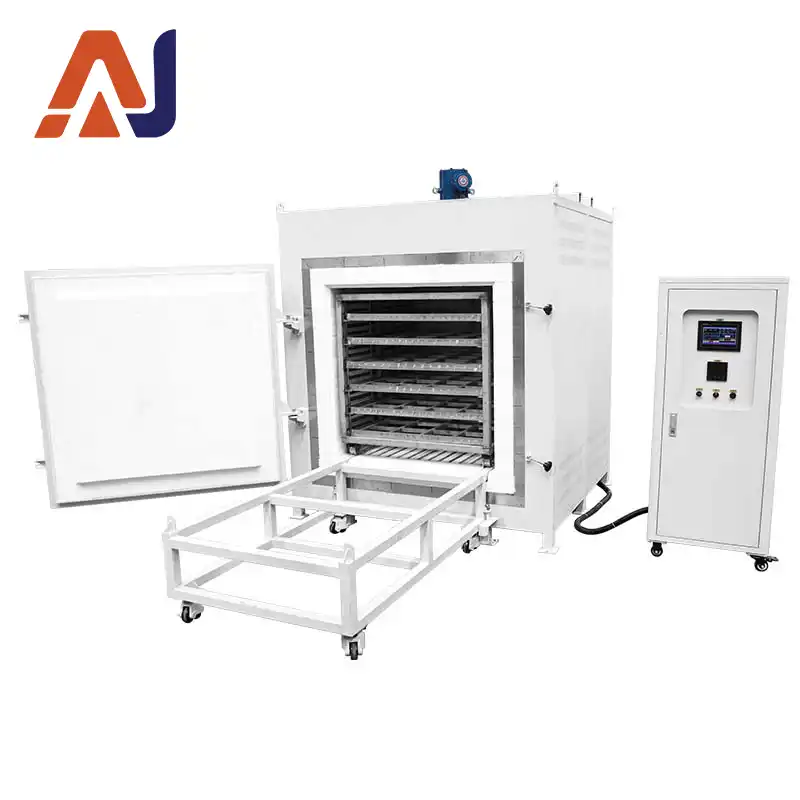

The AJ-XL series 800°C high-temperature drying oven adopts an integrated compact design of the control system and furnace body, as shown in the figure. The furnace chamber uses vacuum-formed high-purity lightweight alumina fiber insulation material.
This equipment uses high-temperature alloy resistance wire heating elements and is specially designed and manufactured for university laboratories, research institutes, and industrial enterprises. It is widely used in the sintering, melting, analysis, and production processes of ceramics, metallurgy, electronics, glass, chemical materials, machinery, refractory materials, new materials, special materials, building materials, metals, non-metals, and various composite materials.
The control panel is equipped with an intelligent temperature controller, power switch, main heating start/stop button, voltmeter, ammeter, and computer communication interface, enabling real-time monitoring of the system's operating status. The equipment adopts a reliable integrated circuit design and offers excellent working stability and anti-interference performance. Even at the maximum operating temperature, the outer surface temperature of the furnace body remains ≤45°C, significantly improving the working environment.
The equipment uses microcomputer PID program control with programmable heating curves, achieving fully automatic heating and cooling cycles. Temperature parameters and programs can be modified during operation, providing flexible adjustment and convenient operation.
Temperature control accuracy: ±1°C, without overshoot
Constant temperature accuracy: ±1°C
Maximum heating rate: ≤20°C/min
The furnace lining is entirely made of vacuum-formed high-purity lightweight alumina fiber material, featuring high service temperature, low heat storage capacity, excellent thermal shock resistance, and good insulation performance. Its energy-saving effect is more than 60% higher than that of traditional electric furnaces.
The equipment has a reasonable structural design, adopting a double-layer furnace shell and an air-cooled heat dissipation system, which can greatly shorten the experimental and production cycles.

Item	Parameter
Chamber Size	W1000 × D1000 × H1000 mm
Power Supply	AC 415V, 50Hz
Temperature Range	Room Temperature – 800℃
Temperature Sensor	Type K Thermocouple (0–1320℃)
Heating Element	High-temperature alloy resistance wire
Heating Element Layout	Evenly arranged on both sides and bottom of chamber
Temperature Control Accuracy	±1℃ (IC control, no overshoot)
Temperature Uniformity	≤ ±5℃ (depends on chamber size)
Hot Air Circulation System	Top hot air stirring system
Fan Motor	0.75 kW
Impeller	10.5 inch 310S stainless steel centrifugal impeller
Fan Control	Stepless speed regulation via frequency converter
PLC Linkage (Optional)	Supported (fan speed linked with temperature curve)
Insulation Material	Multi-layer high-purity ceramic fiber board
Chamber Lining Material	Vacuum formed high-purity lightweight alumina fiber lining. Features high working temperature, low heat storage, excellent thermal shock resistance and good thermal insulation. Energy efficiency increased by more than 60% compared with traditional furnaces
Furnace Body Structure	Double air-cooled structure
Cooling System	Directed air circulation cooling system
Outer Surface Temperature	≤45℃ under continuous operation
Surface Treatment	CNC machining, polishing, pickling, phosphating, powder coating and high-temperature curing
Structural Features	Anti-oxidation, acid & alkali resistant, corrosion-resistant, easy to clean
Door Opening Type	180° side hinged door
Door Locking System	Elastic locking system (for thermal expansion compensation)
Sliding System	Bottom guide rail + trolley platform
Sample Rack	Refer to outline drawing. 316 stainless steel rack, suitable for long-term service ≤700℃
Control Method	Closed-loop SCR phase-shift control
Output Mode	Constant Voltage / Constant Current / Constant Power
Protection System	Overtemperature, overcurrent, overvoltage, phase loss, soft start, sensor fault protection
Control Architecture	Dual closed-loop (outer voltage loop + inner current loop)
Display Parameters	Temperature, program segment No., remaining time, output power %, voltage, current
Push Buttons	Imported push buttons (life >100,000 times) with LED indicator
Temperature Controller	Intelligent PID / APID / MPT self-tuning system
Program Capacity	50 segments
Programming Function	Heat up / soak, cycle, pause, resume, editable during running
Multi-Curve Input	1 curve (50 segments) / 2 curves (28 segments each) / 3 curves (15 segments each) / 5 curves (9 segments each)
Control Algorithm	Smooth temperature control algorithm based on AI curve fitting
Communication Interface	RS485
Standard Accessories	1 crucible tong, 1 pair of high-temperature gloves
Warranty Period	1 year (excluding heating elements)
Heating Element Warranty	Not covered by warranty; free replacement for natural failure within 3 months

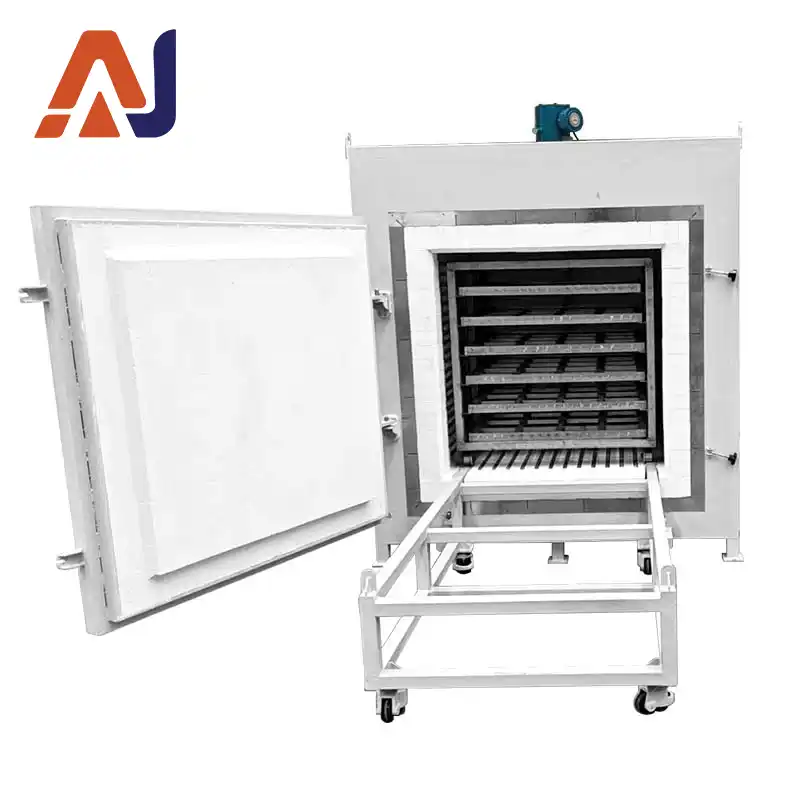

800°C Industrial Heat Treatment Furnace

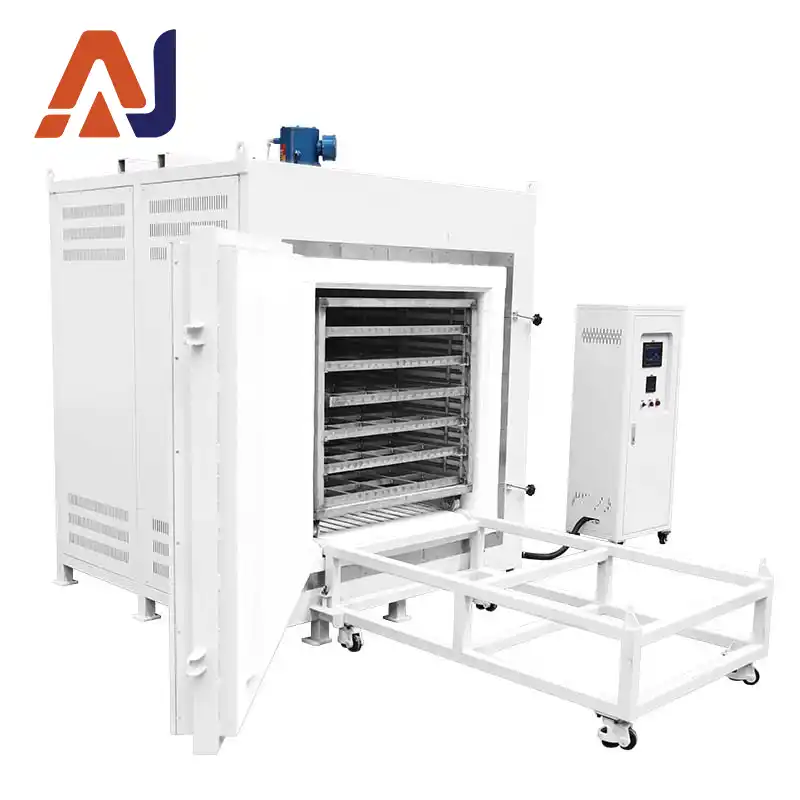

800°C Industrial Heat Treatment Furnace
